XGZ Type Enclosed Submerged Scraper Conveyor For Conveying Bulk Materials

Name: XGZ Type Enclosed Submerged Scraper Conveyor For Conveying Bulk Materials
Brand: Green Eco-Equipment
Price: 1 USD

Quality XGZ Type Enclosed Submerged Scraper Conveyor For Conveying Bulk Materials for sale

Brand Name : Green Eco-Equipment

Certification : ISO9001:2008/CE

Place of Origin : Henan, China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20 sets per month

Delivery Time : 10~15 work days after receiving fullpayment.

Packaging Details : In Bulk/Tray/Wooden Case/As Customer's Requirement

Condition : New

Warranty : 1 year

Material : Carbon Steel

Voltage : 220V/380V/As cuntomer's request

Material Feature : Heat Resistant

Structure : Chain Conveyor

Slant Angle : Max. 20 degree

Chain Material : 40Cr/ Q245 Carbon steel

Dimension(L*W*H) : As Customer's Request

Optimal particle size : <300mm

Application : Manufacturing Plant, Grain Storage, Energy & Mining

After-sales Service Provided : Field installation, commissioning and training

Contact Now

XGZ Type Enclosed Scraper Conveyor Sludge Scraper Conveyor

Product Description

XGZ type scraper conveyor is full sealed conveying equipment, which is widely used for transporting powder and small granular material, such as cement powder, coal, chemical fertilizer, grain and calcium carbonate etc. Newest drag scraper conveyor is suitable for horizontal and inclined conveying of bulk materials.

XGZ Type Enclosed Submerged Scraper Conveyor For Conveying Bulk Materials

Main Features

1.The large throughput can be up to 1000m3/h.
2.Low energy consumption. The friction between the materials is utilized to make the materials move forward, which can save 40% ~ 50% power compared with the screw conveyor.
3.Good tightness and safety. Reduce the overflow of materials.
4.Long service life. The chain has been treated with special heat treatment. The quenching process makes the service life of the chain reach more than 5 years.
5.Reasonable arrangement process. Material can be fed and discharged from many holes.

Main Parameters

Model	XGZ-06	XGZ-08	XGZ-10	XGZ-12	XGZ-14
Delivery value(t/h)	100-300	200-500	300-600	400-800	500-1000
chain speed(m/s)	0.48-0.76	0.48-0.76	0.48-0.76	0.48-0.76	0.48-0.76
conveying distance(m)	6.7-64.3	8.2-64.3	8.6-43.6	8.9-63.5	8.6-53.6
material diameter(mm)	<200	<300	<300	<300	<300
scraper width(mm)	600	800	1000	1200	1400
Scraper spacing(mm)	1024	1024	1024	1024	1024

Details Show
XGZ Type Enclosed Submerged Scraper Conveyor For Conveying Bulk Materials

Why choose us?

1. Factory direct sale: No middlemen, no discount on service, help to save time, as well as money for you.
2. An excellent R&D team: A professional team who can design drawings rapidly and accurately, improve your equipment, and provide technical support to solve your problems in time.
3. Strict quality control: Production technology is strictly in accordance with the national production standards. Defective products are prohibited from leaving the factory.
4. Good after-sale service:
a. Provide installation plan guidance.
b. 2 hours for after-sales response, 24 hours for solution.

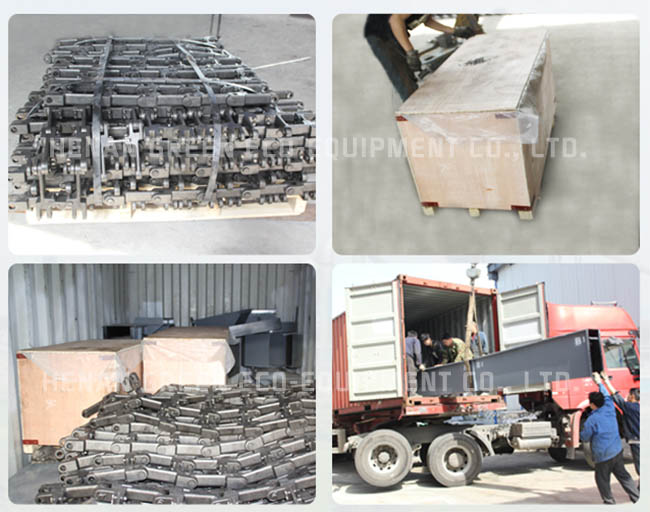

Packing & Shipping

Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.
XGZ Type Enclosed Submerged Scraper Conveyor For Conveying Bulk Materials
